VORTICE - AÉRATEUR HÉLICOÏDAL, GROUPE D'ALIMENTATION 12V - BASSE TENSION

• VERSION POWERED BY SAFE LOW VOLTAGE SUPPLY (SELV - 12V) REQUIRING TRANSFORMER, PURCHASED SEPARATELY
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 90 M3/H.
• EQUIPPED WITH SYSTEM BY WHICH THE LOUVRES OF THE GRILLE ARE OPENED AND CLOSED AUTOMATICALLY.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.

PUNTO 12V M 100/4" AUTOMATIC 11223

À UTILISER AVEC L'ALIMENTATION 22150/22151

ABSORBED CURRENT MAX (A): 0,1
ABSORBED POWER MAX (W): 18
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 99
VOLTAGE (V): 12
WEIGHT (KG): 0,6
DELIVERY MAX (L/S): 25
DELIVERY MAX (M³/H): 90
PRESSURE MAX (MMH2O): 3
PRESSURE MAX (PA): 29
RPM: 2300
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 37,5

SIZE A (MM): 159
SIZE B (MM): 160
SIZE C (MM): 100
SIZE D (MM): 47
SIZE E (MM): Ø 99

série PUNTO VORTICE 12V

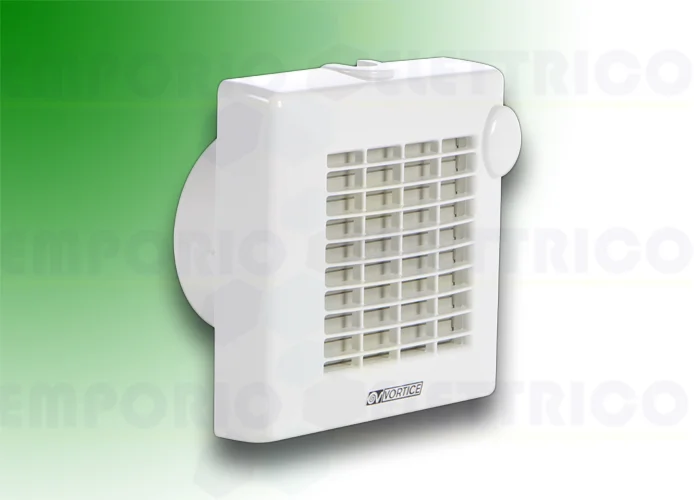

vortice aérateur punto 12v m 100/4 automatic 11223

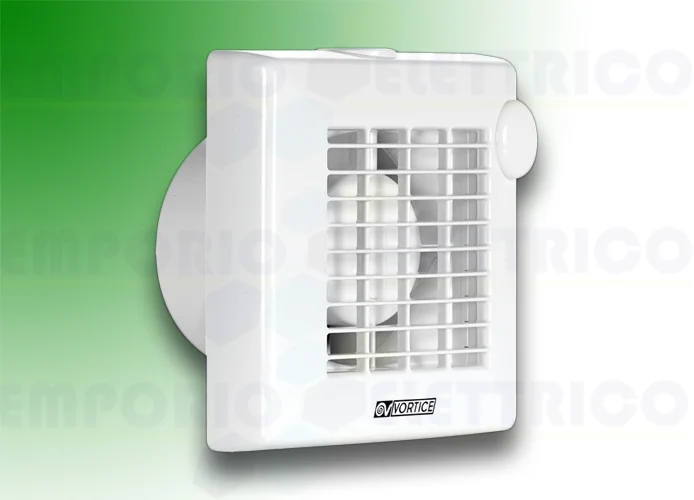

vortice aspirateur hélicoïdal série punto 12v m 100/4" 11203

vortice groupe d'alimentation 12v 22150

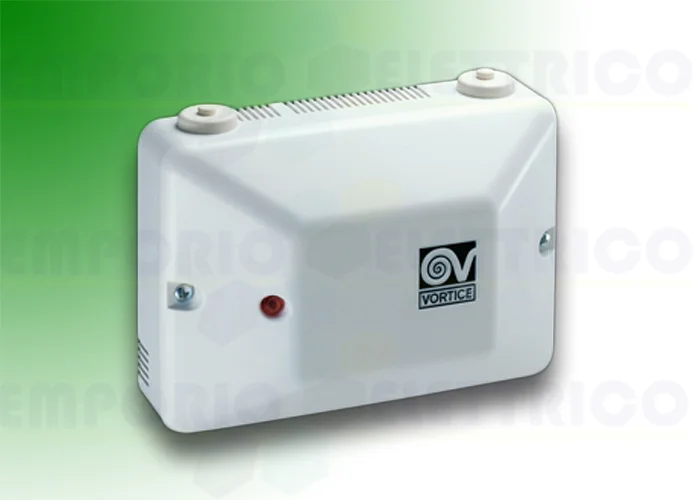

vortice groupe d'alimentation 12v timer 22151
