VORTICE - VENTILATEUR DE PLAFOND RÉVERSIBLE, SÉRIE NORDIK INTERNATIONAL PLUS RÉVERSIBLE 160/60" BLANC

PROTEGÉ PAR LES JETS D'EAU, IDÉAL POUR APPLICATIONS EN EXTÉRIEUR

- DESIGN AND CONSTRUCTION MADE IN ITALY.
- HIGH DEGREE OF PROTECTION FROM WATER JETS (IPX5), WHICH ALLOWS TO HAVE ALSO AN OUTDOOR INSTALLATION
- REVERSIBILITY FUNCTION: IT IS POSSIBLE TO REVERSE THE DIRECTION OF THE AIR FLOW DIRECTING IT FROM THE BOTTOM TOWARDS THE UP TO CREATE AN INDIRECT AND WIDE FLOW. IN THIS WAY THE DESTRATIFICATION OF THE HEAT IN THE WINTER IS IMPROVED, REDUCING THE TEMPERATURE DIFFERENCE BETWEEN THE FLOOR (THE MOST COLD) AND THE CEILING (HOTEST).
- IT REFRESHES PEOPLE WHO ARE INSIDE A ZONE CORRESPONDING AT ABOUT 2.5 TIMES THE DIAMETER OF THE FAN BLADES.
- THE FAN MUST BE TO A MINIMUM 2.3M OF HEIGHT
- ACCORDING TO THE REQUIREMENTS OF THE 206/2012 EUROPEAN REGULATION

NORDIK INTERNATIONAL PLUS 160/60" IPX5 61744

MAX. CURRENT CONSUMPTION (A): 0.33
BLADES DIAMETER: 1524
FREQUENCY (HZ): 50
PROTECTION DEGREE: IPX5
INSULATION: I° CLASS
WEIGHT (KG): 7.00
MAX POWER CONSUMPTION (W): 70
MOTOR POWER (W): 70
VOLTAGE (V): 220-240
MAX FLOW RATE (M³/H): 14000
MAX FLOW RATE (M³/MIN): 233.33
SOUND POWER LW [DB(A)]:55.5
RPM: 201
OPERATING VALUES (M³/MIN)/W: 3,333
AIR SPEED AT MAX VEL. (M/S): 1.34

SIZE A (MM): Ø 1524
SIZE B (MM): Ø 230
SIZE C (MM): 495

Complementary accessories (NOT INCLUDED):

- SC 503 N - Built-in control box grey 12802
- SC 503 B - Built-in control box white 12801
- SC EXT B - Built-in control box white 12803
- PLATE FOR SC 503 B - White plate 22462 for 12801 - 12802 - 12803
- PLATE FOR SC 503 N - Grey plate 22463 for 12801 - 12802 - 12803
- SCRR5 - 5-positions reversible speed regulator 12963
- SCRR/M - Reversible speed regulator up to 6 fans 12965
- KIT SCBRR5/5L/M - Kit to transform the 5-positions outdoor speed controllers to built-in speed controller 22489 for 12963
- VORT DELTA T - Multiple speed regulator up to 16 fans 13039

vortice ventilateur de plafond nordik international plus 160/60" 61744

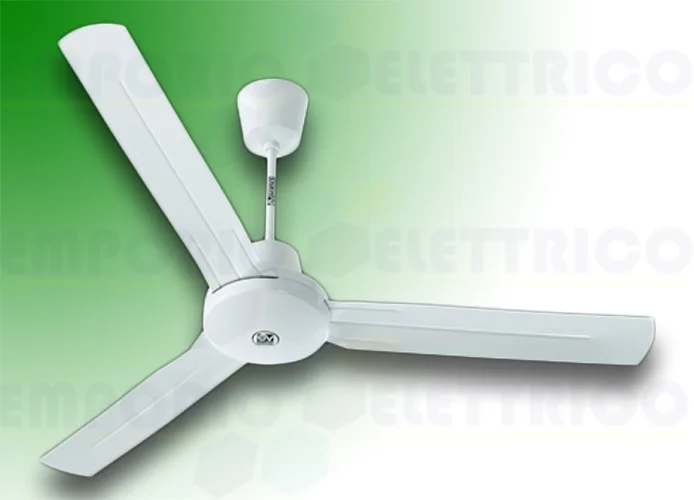

vortice ventilateur plafond nordik international plus 140/56" 61742
